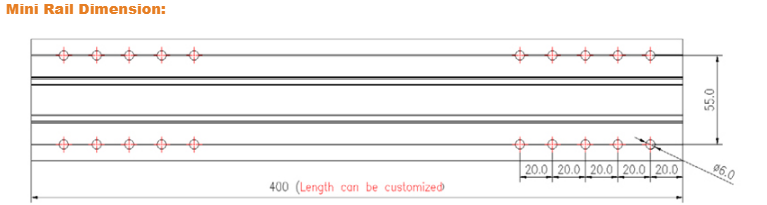

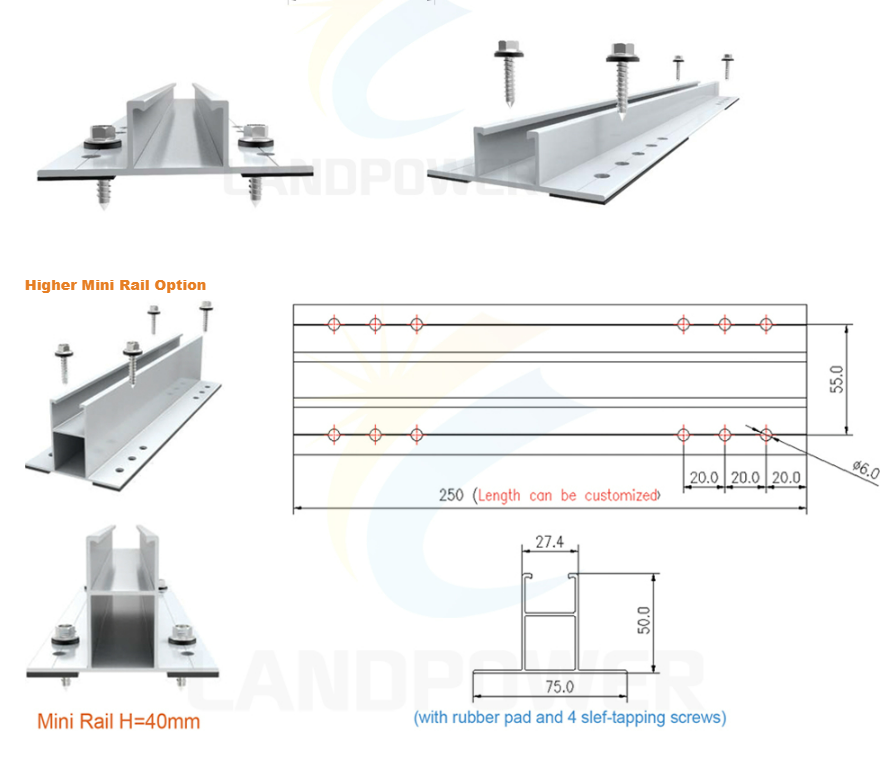

Solar Mini Rail

Aluminium Mini Rail Solar Mounting System is cost-effective solution for trapezoidal roof,corrugated roof etc, it is easy and simple roof solar mounting systems.

Technical Information

Install site:Trapezoidal Sheet Metal

Tilt Angle:Flushed with the roof(10-60 deg)

Max Wind Speed:<60m/s

Snow Load：<1.4KN/㎡

Material:Aluminum 6005-T5&Stainless Steel A2(304) EPDM

Color:Sliver,Black or Customized

Warranty:Ten years warranty and twenty-year service life

If you have any inquiry about the products,feel free contact to us.
