Solar Mounting Accessories-Rail and Quick fit Clamp

In the solar mounting industry, rail and quick fit clamp are two core components that have revolutionized installation efficiency. These two parts work together to cut on-site construction time while ensuring the stability of the whole photovoltaic system.

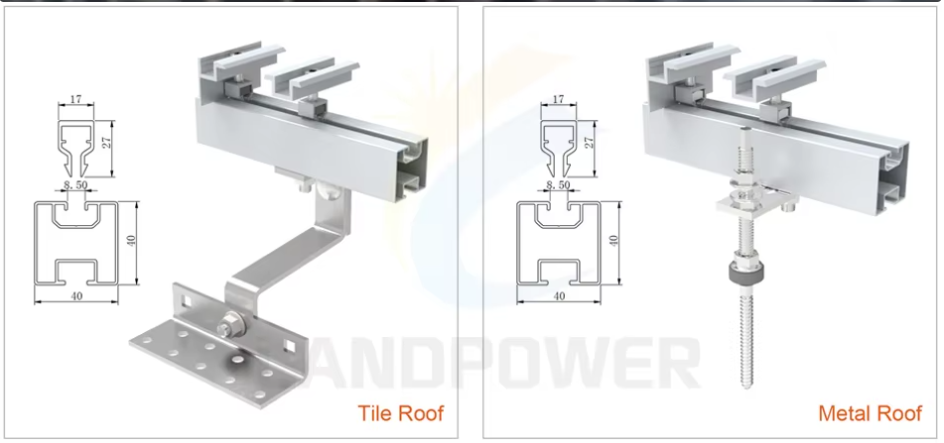

Mounting Rail

The rail is the main horizontal or vertical support that holds the PV modules and connects to the underlying bracket structure. Made of extruded aluminum alloy, most rails are lightweight but have high structural strength, which can resist long-term wind and corrosion.

Standardized rails also bring great convenience to system adjustment. Whether it is a ground mount, rooftop or carport system, rails can be cut to the required length on site, adapting to different layout requirements of PV modules.

Why Quick Fit Clamp Saves Time

The quick fit clamp is designed to replace the traditional screw-locking installation method. Traditional installation requires workers to tighten screws one by one, which is time-consuming and labor-intensive. But the quick fit clamp can be directly buckled on the rail, and only a simple twist is needed to fix the PV frame in place.

This design can reduce on-site installation time by more than 40%, which means large-scale solar farms can be completed much faster, directly lowering labor costs for the project.

The Perfect Combination for Efficient Projects

When matched together, rail and quick fit clamp create a very installer-friendly system. Workers do not need too many professional tools, and the simple operation reduces the error rate during installation. This combination is now the first choice for most mainstream solar mounting systems, balancing installation speed, stability and overall project cost.

If you are interested in the Solar Mounting Accessories,feel free to contact us.

Contact email:sales9@landpowersolar.com
